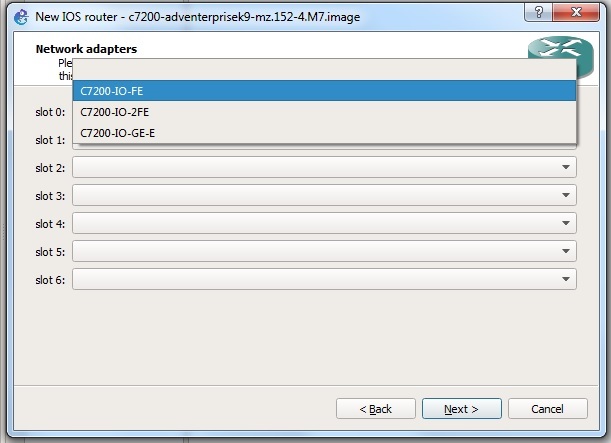

To add serial interfaces to a C7200: Right click on the router; Click on Configure; Select the router from the list; Click on the 'Slots' tab; In Slot 1 or above add either 'PA-4T+' or 'PA-8T'. In the IOS image page, select the New Image radio button, click Browse and select the router IOS image that you want to add in GNS3. In this case, e will use Cisco router c2691 IOS image. Click Next to proceed, as shown in the following figure.
- The three images are the standard c7200-boot-mz boot image, the c7200-kboot-mz boot image, and the c7200-mboot-mz image. The c7200-kboot-mz image was released in October, 2000 and is larger than the standard c7200-boot-mz image because it supports newer hardware that is not supported in the c7200-boot-mz image.
- How to Setup a Cisco Router’s Ethernet and Serial Interfaces. The most basic process of configuring an interface is to open the port and assign an IP address. After assigning an IP address to the Router, you can also add a description for the network on which you will use that interface.
| Print view | Previous topic Next topic |
|
| Author | Message |
|---|
Post subject: How to add serial port on C7200 router? |
|
Joined: Fri Nov 08, 2013 4:15 pm
Posts: 4 | Hello,
I want to test frame-relay, but there no serial port on C7200 router, how to do that ?
Thanks
|
|
| Top |
Post subject: Re: How to add serial port on C7200 router? |
|
Joined: Fri Nov 08, 2013 4:15 pm
Posts: 4 | |
| Top |
Gns3 C7200 Slots Games
Post subject: Re: How to add serial port on C7200 router? |
|
Joined: Sun Sep 16, 2012 9:55 pm
Posts: 541
Location: England | To add serial interfaces to a C7200: - Right click on the router
- Click on Configure
- Select the router from the list
- Click on the 'Slots' tab
- In Slot 1 or above add either 'PA-4T+' or 'PA-8T'
- Click Apply and Ok
You now have either 4 or 8 serial interfaces
_________________
Daniel
Forum Moderator & Debian Package Maintainer for GNS3, Dynamips & VPCS.
Standalone DEB Packages are available from http://gns3.serverb.co.uk - To be updated!
|
|
| Top |
Post subject: Re: How to add serial port on C7200 router? |
|
Joined: Fri Nov 08, 2013 4:15 pm
Posts: 4 | Hi
Now I want to create sub-interface in s1/0, it allow me to create s1/0.1, but can't create s1/0.2, it showing 'Incomplete Command', is it GNS3 bug ?
Thanks
|
|
| Top |
Post subject: Re: How to add serial port on C7200 router? |
|
Joined: Fri Mar 05, 2010 11:33 am
Posts: 1494
Location: Australia | Whenever you see 'incomplete command', use the ? at the end of the command you just entered.
Usually this means hit the following 3 keys in sequence: <up arrow><space>?
So, in you case,
interface serial 1/0.2 ?
and you will see the error of your ways (I hope)
_________________
RedNectar
http://rednectar.net
@rednectarchris
GNS3 WorkBench-a VMware image of Ubuntu with GNS3 and VPCS installed and a collection of exercises/labs
|
|
